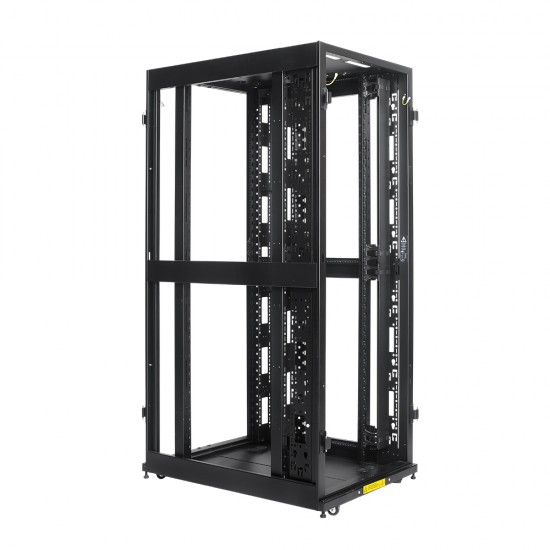

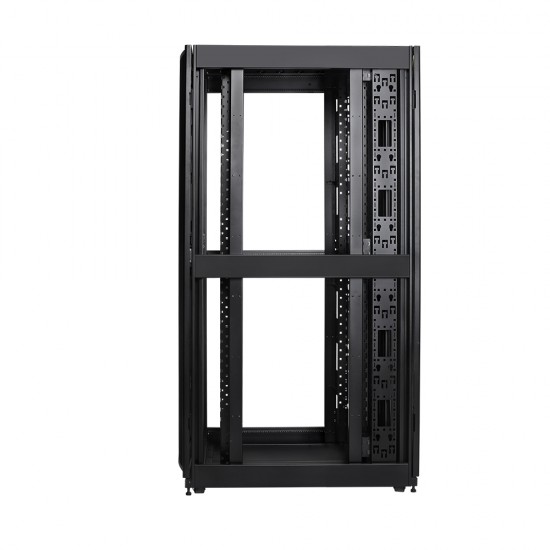

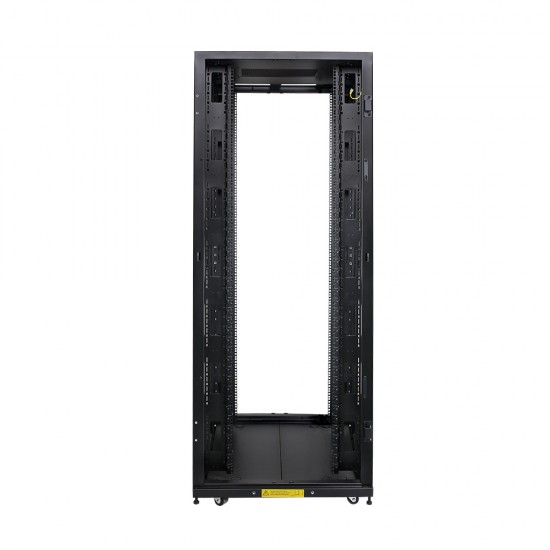

47U Premium Server Cabinet 800mm wide

The NCF Premium Server Cabinet is designed to meet IT Data Center requirements, for high density computing, networking and other broad applications like Audio/Video components. This enclosure provide flexible ways to mount your devices reliably and securely. With vented doors, built-in cable and PDU management standard features, this cabinet will satisfy all your needs for securely mounting the mission-critical equipment.

47U Premium Server Cabinet 31.5in/800mm wide and offer various depth options. All measurements denote outside dimensions.

All server cabinets come with heavy duty casters and leveling feet.

Optional  digital combo lock.

Industry Standards: EIA 310

Features

Rugged Construction
Static load: 3000lb/1364kg (adjustable feet)
Dynamic load: 2400lb/1088kg (on casters)

Quick Assembly/Flexible Components
Fully assembled and Optional Flat pack available.

Excellent Ventilation

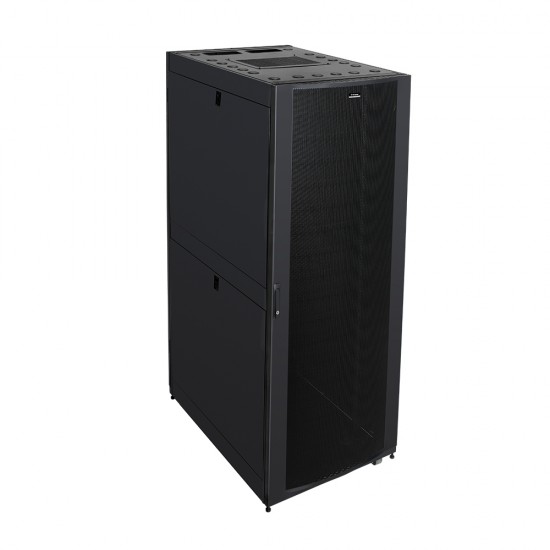

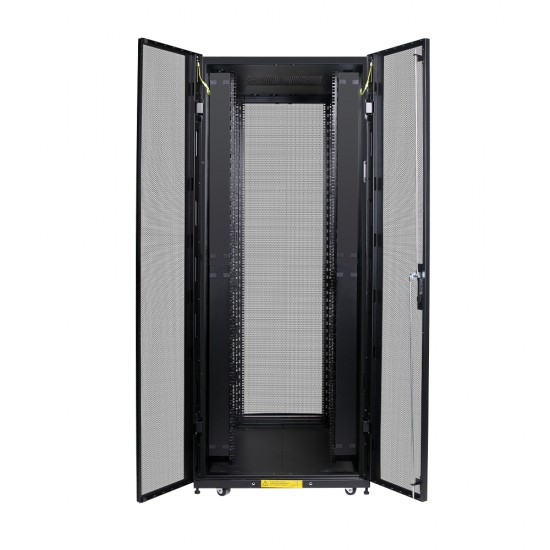

With a slightly curved edge to edge front door, a split rear door, and a rotation angle of 140 degrees, this server cabinet provides a ventilation rate of more than 80%, Our cabinets provide adequate cooling for your components.

Convenient Cable Entry
Cable entry is located at the top and bottom, with plastic knockouts for protected cable passthrough access.

Easy Door and Panel Removal
Front & back doors and side panels are easily removed or reversed. The side panels are a two-stage design to reduce the weight load of the cabinet.

User Friendly installation

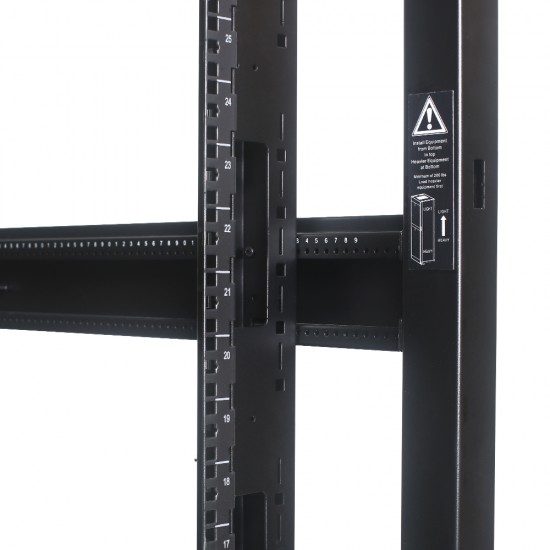

There are square hole mounting rails with M6 mounting holes for easy installaion. With clearly identified rack units(U), it’s easy to place devices anywhere you want.

Convenient Maintenance
The split back door is designed for to allow for equipment installation and maintenance in small or confined space.

Convenient Locking Mechanism
Pull and rotate the handle to open the door. Push the door back to lock the door with the key. Optional digital dial/key combination lock available
